Details

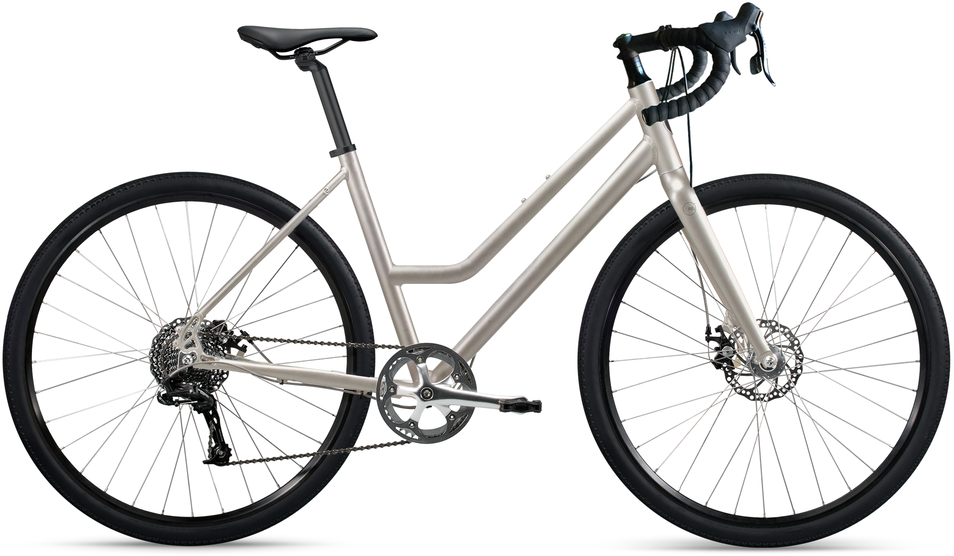

Our New A:1R was a process of reduction. The distillation of all it’s parts to the simplest, most capable, and most efficient combination, to produce a bike that performs far beyond it’s class. Designed to tackle longer gravel and multi-surface rides the A:1R is built for explorers and all day adventures. The A:1R is equally at home in town or country, beautifully designed, and like all of our bikes, can be fully outfitted with racks, luggage, and accessories to take you around the block or across the country.
At the heart of the A:1R is the same proven 6061 double butted aluminum frame and supple hydro-formed aluminum fork we use on our A:1. We combine our custom short reach drop handle bar, with a 0 degree set back seat post to shift the rider forward into an efficient, comfortable, all day long riding position. Our streamlined frames have been engineered to provide lateral stiffness for exceptional power transfer, combined with vertical compliance for a remarkably comfortable ride. Our bikes are designed and engineered for the long haul in every detail, incorporating internally routed cables with end to end housing for clean, consistent and low service shifting and braking.
Our new A:1R Adventure Road bike is the latest model in our line up, and is a direct descendent of our iconic flat bar A:1 Adventure bike. It’s our response to serve the growing number of our riders and team members customizing their own existing A:1 bikes to a drop bar set up. SRAM Apex 10speed shifter and brake levers take care of shifting and braking duties, offering sequential gear changes as terrain changes. Disc brakes are standard and offer performance far beyond traditional rim brakes. We use superior sealed bearings throughout, for longevity and resilience. Perfect for long climbs and full days in the saddle, our AR:1 adventure road is available in both diamond and step trough frames, in all 6 of our standard colors.
Specs
Frame | Light weight, double butted 6061 aluminum, with internal cable routing. |
---|---|
Fork | Hydro-formed 6061 aluminum disc specific, with alloy steerer tube. |
Headset | VP alloy semi integrated with sealed cartridge bearings |
Rims/Wheels | 700c 32hole double wall anodized alloy. |
Hubs | Polished aluminum disc, sealed cartridge bearings, bolt on QR Skewers. |
Spokes | Stainless steel 14g spokes stainless steel nipples. |
Tires | 700x40mm Kenda K1152 Flintridge Dual Tread. |
Crankset | Forged 6061 aluminum polished crank arms, with alloy chain guard. |
Chainwheel | 34 Tooth machined alloy, 3/32" |
Bottom Bracket | Alloy shell with sealed cartridge bearings, square taper steel axle. |
Chain | KMC X10-93 10 speed, silver. |
Rear Derailleur | SRAM X5 10 Speed 1x10 long cage. |
Rear Cogs | SRAM PG-1030 10 speed 11-36 PowerGlide II. |
Shifters | SRAM Apex 1x10 DoubleTap shift lever brake. |
Handlebars | 6061 Aluminum AR:1 Adventure Road bar, 440mm wide, 5.0° sweep |
Tape/Grips | EVA vibration-damping foam tape. |
Stem | 3D Forged aluminum alloy, +/- 7 degree rise |
Brake Levers | SRAM S-500 left brake lever. |
Brakes | Tektro MD-M300, mechanical disc brake, with 160mm TR-1 Rotor. |
Pedals | Nylon platform with sealed bearings. |
Saddle | Men's / women's Road Saddle, with steel rails. |
Seat Post | Aluminum alloy 30.9mm diameter with 0mm offset. |
Color(s) | Matte Charcoal, Solar Orange, Matte Silver Ti, Matte Bengal Red, British Racing Green, Carrera White |
Sizes | Small, Medium, Large |
* Subject to change without notice.
Videos
A:1R Adventure Road Bike
Part Numbers
Option | MPN |
---|---|
Matte Silver Ti / Small | BKE-1B-ADVRST-SSLV_STB-M |
Matte Silver Ti / Medium | BKE-1B-ADVRST-MSLV_STB-M |
Matte Silver Ti / Large | BKE-1B-ADVRST-LSLV_STB-M |
Matte Bengal Red / Small | BKE-1B-ADVRST-SRED_STB-M |
Matte Bengal Red / Medium | BKE-1B-ADVRST-MRED_STB-M |
Matte Bengal Red / Large | BKE-1B-ADVRST-LRED_STB-M |
British Racing Green / Small | BKE-1B-ADVRST-SBRG_STB-M |
British Racing Green / Medium | BKE-1B-ADVRST-MBRG_STB-M |
British Racing Green / Large | BKE-1B-ADVRST-LBRG_STB-M |
Carrera White / Small | BKE-1B-ADVRST-SWHT_STB-M |
Carrera White / Medium | BKE-1B-ADVRST-MWHT_STB-M |
Carrera White / Large | BKE-1B-ADVRST-LWHT_STB-M |
